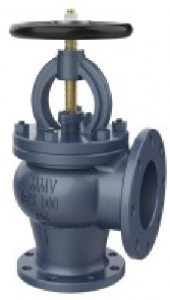

ANGLE VALVES, CAST IRON BODY, BRONZE TRIM, JIS 16K
F-7310 STOP (FIXED DISC)| DN | Code | Flange OD | PCD | Holes no. x Dia | Center to Face |
|---|---|---|---|---|---|
| 50 | 750271 | 155 | 120 | 8 | 19 | 120 |
| 65 | 750272 | 175 | 140 | 8 | 19 | 130 |
| 80 | 750273 | 200 | 160 | 8 | 23 | 150 |
| 100 | 750274 | 225 | 185 | 8 | 23 | 170 |
| 125 | 750275 | 270 | 225 | 8 | 25 | 200 |
| 150 | 750276 | 305 | 260 | 12 | 25 | 225 |
| 200 | 750277 | 350 | 305 | 12 | 25 | 250 |
