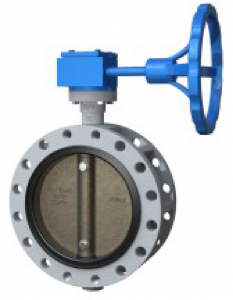

BUTTERFLY VALVES, DOUBLE FLANGE TYPE, JIS 10K, WORM GEAR OPERATED
ISO FACE TO FACE SHORT PATTERN, UNDRILLED FLANGES - WITH CLASS CERTIFICATE| DN | Code | Body | Stem | Disc | Seat | Flanges | L |
|---|---|---|---|---|---|---|---|
| 100 | 752340CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 52 |
| 125 | 752341CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 56 |
| 150 | 752342CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 56 |
| 200 | 752343CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 60 |
| 250 | 752344CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 68 |
| 300 | 752345CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 78 |
| 350 | 752346CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 78 |
| 400 | 752347CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 102 |
| 450 | 752348CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 114 |
| 500 | 752349CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 127 |
| 550 | 752349ACS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 154 |
| 600 | 752350CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 154 |
| 700 | 752351CS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 165 |
| 750 | 752351ACS | SC480 | SUS410 | Alu-Bronze | NBR | UNDRILLED | 190 |
