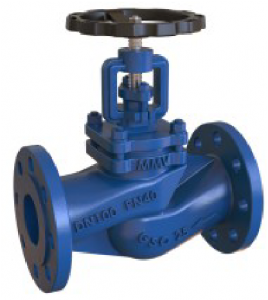

GLOBE VALVES, BELLOW SEALED TYPE FOR THERMO OIL APPLICATION NODULAR CAST IRON BODY & STAINLESS STEEL TRIM, DIN PN16
SCREW DOWN NON RETURN (SDNR)| DN | Code | Flange OD | PCD | Holes x Dia | Face to Face |
|---|---|---|---|---|---|
| 15 | 755378NR | 95 | 65 | 4 | 14 | 130 |
| 20 | 755379NR | 105 | 75 | 4 | 14 | 150 |
| 25 | 755380NR | 115 | 85 | 4 | 14 | 160 |
| 32 | 755381NR | 140 | 100 | 4 | 18 | 180 |
| 40 | 755382NR | 150 | 110 | 4 | 18 | 200 |
| 50 | 755383NR | 165 | 125 | 4 | 18 | 230 |
| 65 | 755384NR | 185 | 145 | 4 | 18 | 290 |
| 80 | 755385NR | 200 | 160 | 8 | 18 | 310 |
| 100 | 755386NR | 220 | 180 | 8 | 18 | 350 |
| 125 | 755387NR | 250 | 210 | 8 | 18 | 400 |
| 150 | 755388NR | 285 | 240 | 8 | 22 | 480 |
| 200 | 755389NR | 340 | 295 | 12 | 22 | 600 |
