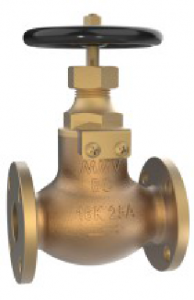

GLOBE VALVES, BRONZE BODY & TRIM, JIS 16K
F-7303 STOP (FIXED DISC)| DN | Code | Flange OD | PCD | Holes x Dia | Face to Face |
|---|---|---|---|---|---|
| 15 | 750141 | 95 | 70 | 4 | 15 | 110 |
| 20 | 750142 | 100 | 75 | 4 | 15 | 120 |
| 25 | 750143 | 125 | 90 | 4 | 19 | 130 |
| 32 | 750144 | 135 | 100 | 4 | 19 | 160 |
| 40 | 750145 | 140 | 105 | 4 | 19 | 180 |
| 50 | 750146 | 155 | 120 | 4 | 19 | 220 |
