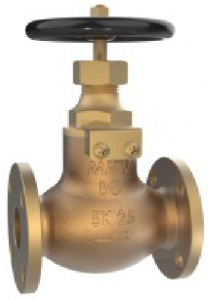

GLOBE VALVES, BRONZE BODY & TRIM, JIS 5K
F-7301 STOP (FIXED DISC)| DN | Code | Flange OD | PCD | Holes x Dia | Face to Face |
|---|---|---|---|---|---|
| 15 | 750121 | 80 | 60 | 4 | 12 | 100 |
| 20 | 750122 | 85 | 65 | 4 | 12 | 110 |
| 25 | 750123 | 95 | 75 | 4 | 12 | 120 |
| 32 | 750124 | 115 | 90 | 4 | 15 | 140 |
| 40 | 750125 | 120 | 95 | 4 | 15 | 160 |
| 50 | 750126 | 130 | 105 | 4 | 15 | 210 |
| 65 | 750127 | 155 | 130 | 4 | 15 | 250 |
