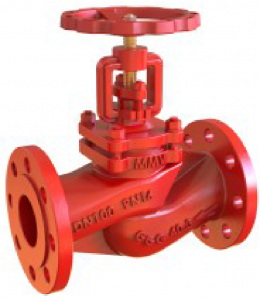

GLOBE VALVES, DIN PN10 / PN16 NODULAR CAST IRON BODY & BRONZE TRIM, WITH CLASS CERTIFICATE

SCREW DOWN NON RETURN (SDNR)

DN	Code	Flange OD	PCD	Holes x Dia	Face to Fac
15	755401NR	95	65	4 \| 14	130
20	755402NR	105	75	4 \| 14	150
25	755403NR	115	85	4 \| 14	160
32	755404NR	140	100	4 \| 18	180
40	755405NR	150	110	4 \| 18	200
50	755406NR	165	125	4 \| 18	230
65	755407NR	185	145	4 \| 18	290
80	755408NR	200	160	8 \| 18	310
100	755409NR	220	180	8 \| 18	350
125	755410NR	250	210	8 \| 18	400
150	755411NR	285	240	8 \| 22	480
200	755412NR	340	295	8 \| 22	600
250	755413NR	395	350	12 \| 22	730
300	755414NR	445	400	12 \| 22	850
