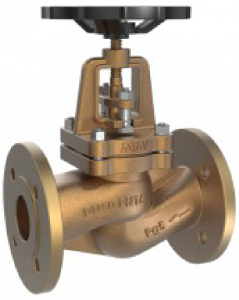

GLOBE VALVES, DIN PN16
BRONZE BODY & TRIM, BOLTED BONNET, STOP (FIXED DISC)| DN | Code | Flange OD | PCD | Holes no. x Dia | Face to Face |
|---|---|---|---|---|---|
| 15 | 755201 | 95 | 65 | 4 | 14 | 130 |
| 20 | 755202 | 105 | 75 | 4 | 14 | 150 |
| 25 | 755203 | 115 | 85 | 4 | 14 | 160 |
| 32 | 755204 | 140 | 100 | 4 | 18 | 180 |
| 40 | 755205 | 150 | 110 | 4 | 18 | 200 |
| 50 | 755206 | 165 | 125 | 4 | 18 | 230 |
