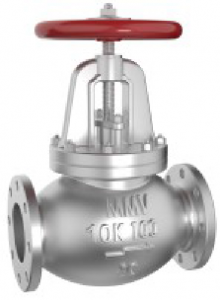

GLOBE VALVES, JIS 10K - WITH CLASS CERTIFICATE
CAST STEEL BODY, STAINLESS STEEL TRIM, F-7471 SCREW DOWN NON RETURN (SDNR)| DN | Code | Flange OD | PCD H | Holes x Dia | Face to Face |
|---|---|---|---|---|---|
| 50 | 751201 | 155 | 120 | 4 | 19 | 220 |
| 65 | 751202 | 175 | 140 | 4 | 19 | 270 |
| 80 | 751203 | 185 | 150 | 8 | 19 | 300 |
| 100 | 751204 | 210 | 175 | 8 | 19 | 350 |
| 125 | 751205 | 250 | 210 | 8 | 23 | 420 |
| 150 | 751206 | 280 | 240 | 8 | 23 | 490 |
| 200 | 751207 | 330 | 290 | 12 | 23 | 570 |
| 250 | 751208 | 400 | 355 | 12 | 25 | 740 |
| 300 | 751209 | 445 | 400 | 16 | 25 | 840 |
