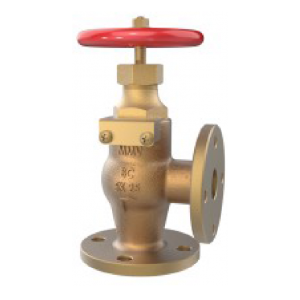

GLOBE VALVES, JIS 16K - WITH CLASS CERTIFICATE
BRONZE BODY & TRIM, F-7409 SCREW DOWN NON RETURN (SDNR)| DN | Code | Flange OD | PCD | Holes x Dia | Face to Face |
|---|---|---|---|---|---|
| 15 | 751071CC | 95 | 70 | 4 | 15 | 110 |
| 20 | 751072CC | 100 | 75 | 4 | 15 | 120 |
| 25 | 751073CC | 125 | 90 | 4 | 19 | 130 |
| 32 | 751074CC | 135 | 100 | 4 | 19 | 160 |
| 40 | 751075CC | 140 | 105 | 4 | 19 | 180 |
| 50 | 751076CC | 155 | 120 | 8 | 19 | 220 |
