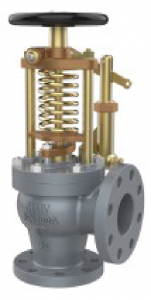

QUICK CLOSING ANGLE VALVES, F7399-A JIS 5K
CAST STEEL BODY, STAINLESS STEEL TRIM - WITH CLASS CERTIFICATE| DN | Code | Flange OD | PCD | Holes no. x Dia | Center to Face |
|---|---|---|---|---|---|
| 50 | 874523 | 130 | 105 | 4 | 15 | 100 |
| 65 | 874524 | 155 | 130 | 4 | 15 | 115 |
| 80 | 874525 | 180 | 145 | 4 | 19 | 130 |
| 100 | 874526 | 200 | 165 | 8 | 19 | 150 |
| 125 | 874527 | 235 | 200 | 8 | 19 | 170 |
| 150 | 874528 | 265 | 230 | 8 | 19 | 190 |
| 200 | 874529 | 320 | 280 | 8 | 23 | 220 |
